Agent Visualizer

The Agent Visualizer Snap is a Utility Snap for SnapLogic AI Agents. It provides a comprehensive dual-view interface combining an interactive diagram and a detailed step-by-step log. This dual visualization approach enables users to trace and analyze agent behavior precisely, offering enhanced transparency into complex AI agent operations and making it easier to understand how agents process and respond to user requests.

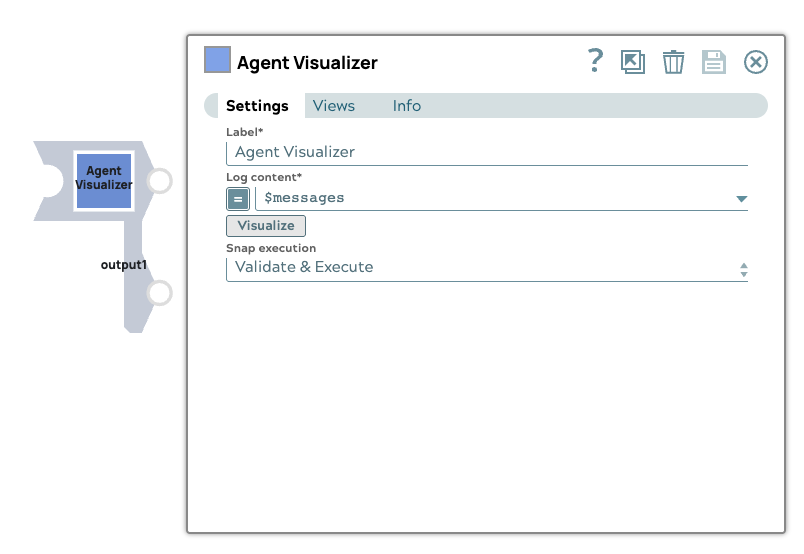

Agent Visualizer screenshot

Prerequisites

  • Existing Agentic Pipeline which has the full messages list for the Agent, or a pipeline which contains agent_vis_log object generated from an Agent Visualizer Snap previously

Snap views

View Description Examples of upstream and downstream snaps
Input This Snap has exactly one document input view. The Snap requires an input document to have either an Agent "messages" list or "agent_vis_log" object as part of the input document schema for it to be visualized by the Agent Visualizer UI. PipeLoop
Output This Snap supports exactly two document output views.
  • The first view is a passthrough of the input document for further processing downstream
  • The second output view generates the actual log ("agent_vis_log") that is being visualized in the Agent Visualizer UI
 JSON Formatter
Error Error handling is a generic way to handle errors without losing data or failing the Snap execution. You can handle the errors that the Snap might encounter when running the pipeline by choosing one of the following options from the ”When errors occur“ dropdown under the Views tab. The available options are:
  • Stop Pipeline Execution Stops the current pipeline execution when an error occurs.
  • Discard Error Data and Continue Ignores the error, discards that record, and continues with the remaining records.
  • Route Error Data to Error View Routes the error data to an error view without stopping the Snap execution.
Learn more about Error handling in Pipelines.

Snap settings

Legend:

  • Expression icon(Expression Toggle): Allows using JavaScript syntax to access SnapLogic Expressions to set field values dynamicall (if enabled). If disabled, you can provide a static value. Learn more.
  • SnapGPT (SnapGPT Icon): Generates SnapLogic Expressions based on natural language using SnapGPT. Learn more.
  • Suggestion icon (Suggest Icon): Populates a list of values dynamically based on your Snap configuration. You can select only one attribute at a time using the icon. Type into the field if it supports a comma-separated list of values.
  • Upload (Upload Icon): Uploads files. Learn more.
Field / Field set Type Description
Label String Required. Specify a unique name for the Snap. Modify this to be more appropriate, esepcially if more than one of the same Snaps is in the pipeline.
Default value: Agent Visualizer
Example: Jira Agent Visualization
Log content String/Expression Required. Specify the messages list or agent_vis_log object from the upstream document
Default value: $messages
Visualize Button Click to launch the Agent Visualizer UI.
